Producto Producto

Producto

Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

LSM22
LSM22

LSM22

Linear Contactless POT.

瀏覽量： Tiempo: 2023-01-09

    Características：

  • Inductance Type

  • Linear Potentiometers/Linear Sensors

  • Bushingmount

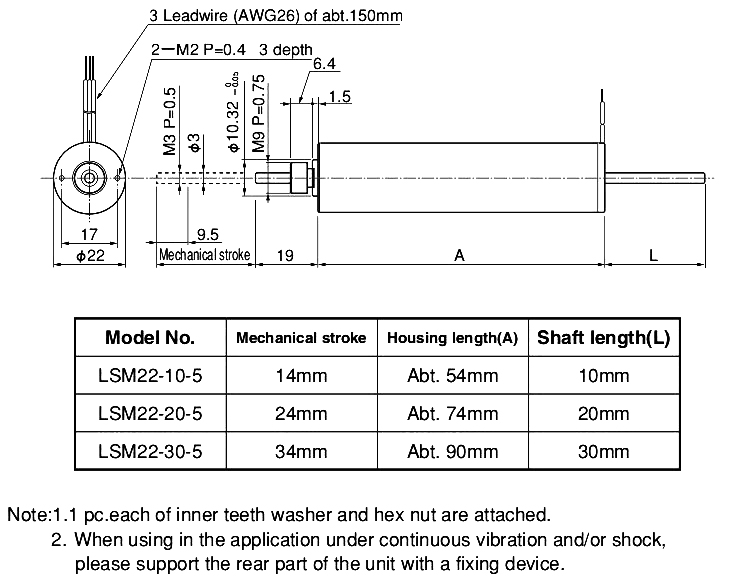

Dimensión


Parámetro

General Specifications

Current Consumption

約5mA

Independent Linearity Tolerance

±0.5%FS

Mechanical Stroke (MS)

約14mm、約24mm、約34mm

Electrical Stroke

約10mm、約20mm、約30mm

Applied Voltage

5V.D.C.

Load Resistance

>10KΩ

Output Voltage Range

Approx. 10％～Approx. 90％ Vin

Output Temperature Characteristic

Within ±2.5％ Vout?FS

Drift at Center Position

Within ±0.5％ Vout?FS

Operating Temperature Range

-40°C～+105°C

Storage Temperature Range

-40°C～+105°C

Mass

Approx.30g, 40g, 60g

Friction

<0.1N（10gf）

Environmental Specifications

Thermal Shock

5 cycles under －50℃～＋105℃

Exposure at Low Temperature

24 hours at －50℃

Exposure at High Temperature

1,000 hours at＋105℃

Moisture Resistance

40℃，95％RH 120 hours

Vibration

10～2000Hz 196m/s2 12 hours

Shock

980m/s2(18 times)

Life Expectancy (Shaft reciprocating motions)

Approx. 50,000,000

Protection Grade

IP40

Special Specifications Available

Spring return device incorporated

Spring return device incorporated

Other

Other special specifications are also possible and please consult us with your concrete requirements
