Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

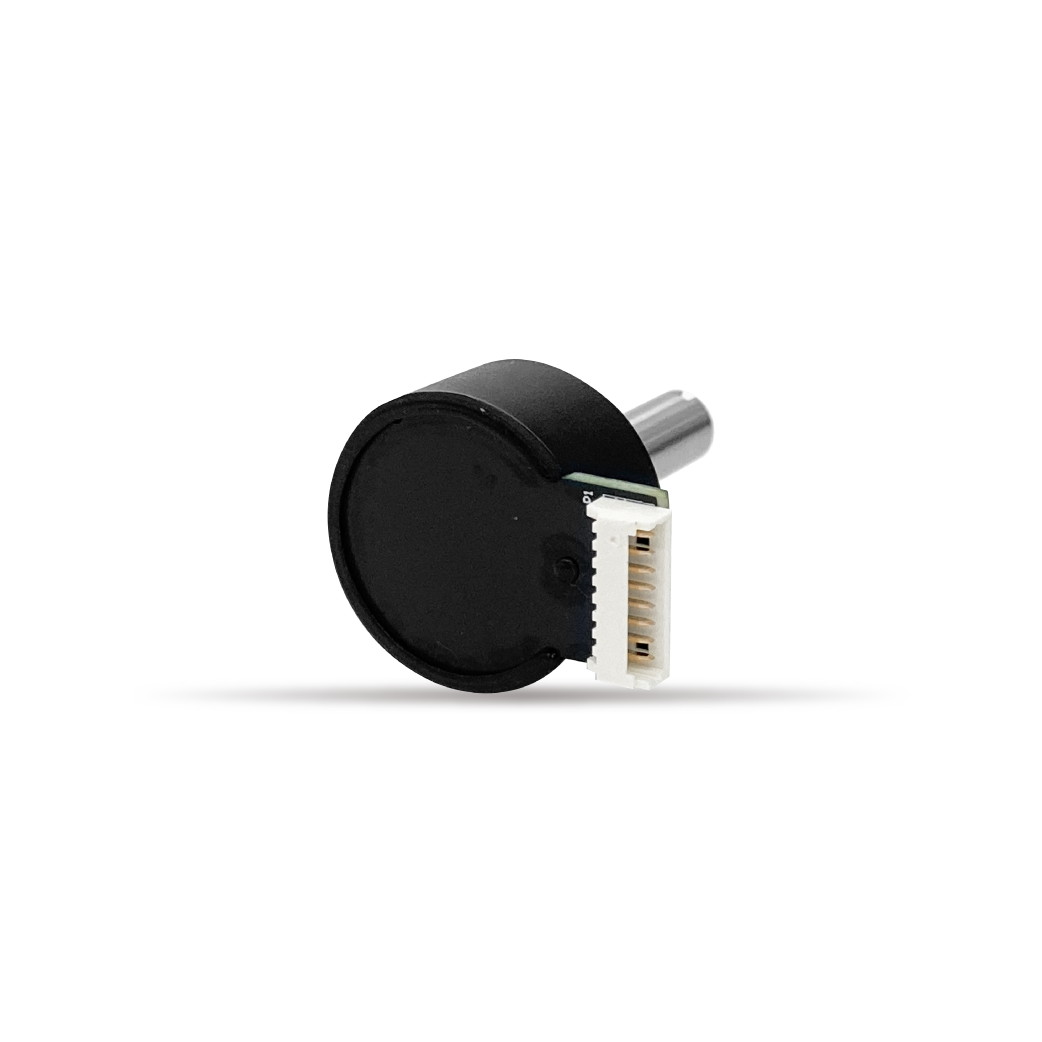

EI22A-E9
EI22A-E9
EI22A-E9
EI22A-E9

EI22A-E9

Incremental Encoders

瀏覽量： Tiempo: 2023-01-09

    Características：

  • Magnetic encoders

  • Any PPR up to 4096 available

  • Solder pads

  • Low cost

  • Small size （Housing dia.Φ22mm）

  • Bushing mount

Dimensión


Parámetro

General Mechanical Specifications

Protection degree

IP40

Operating torque

<5mN·m

Max.speed

1500rpm

Life expectancy

50,000,000

Mass

Approx.12g

Housing material

Plastic

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-30℃～+85℃

Storage temperature range

-30℃～+85℃

General Electrical Specifications

Standard model

EI22A-E9-W4096-P

Applied voltage

3.3V-5V

Output high level

>VCC-0.5

Output low level

<0.5V

Output form

Push-pull output

Number of output pulse

4096 ppr

Output propagation delay

<10μs

Current consumption (no-load)

<28mA

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special shaft

Special length of shaft、special diameter or special machining on shaft (like shaft slotted、fatted etc.)

With connectors

With connectors
