Operating angle

±50°、±135°、±160°

Operating force

Abt.5N~15N

Stoper Strength

120N

Mechanical life expectancy

10,000,000

Mass

Approx.350g

Operating temperature range

-30℃~+85℃

Protection degree

IP65(above panel）

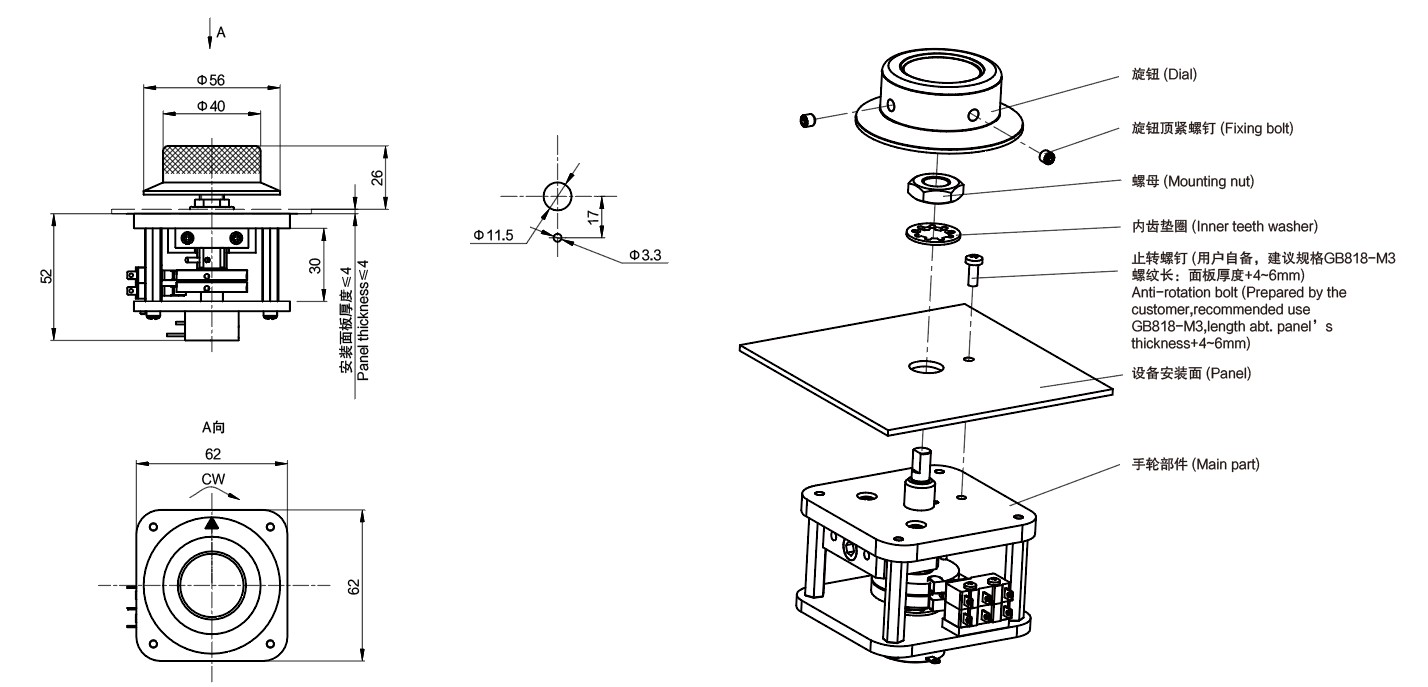

Standard model

HW62W-10K-100-2

Potentiometer model

SFCP22E

Independent linearity tolerance

±3%

Standard resistance value

10K±15%

Effective electrical angle

100°±5°

Power rating

0.2W

Resolution

Essentially infinite

Rating

125V.A.C. / 5A

Electrical life expectancy

200,000

Mechanical life expectancy

30,000,000

Insulation resistance

>100MΩ (500V.D.C.)

Dielectric strength

1min (1000V.A.C.)

Detent

0~3pcs of detent is available according to customers' request, such as center position detent , end position detent, etc.

Special dial

Dial can be customized according to customer request.

Mark on dial

The mark on dial could be printed according to customer's request by laser printer. The indicated location of the mark can be specified according to customer requirements.

Special mechanical structure

We can provide middle position self-locking products.
