Sibo has focused on potentiometers and sensors for 30 years.

XL50SW
XL50SW

XL50SW

Draw Wire Sensor

瀏覽量： Time: 2023-01-29

    Characteristics：

  • Draw-wire position sensor

  • Economy version

  • Measuring range：500mm、1000mm

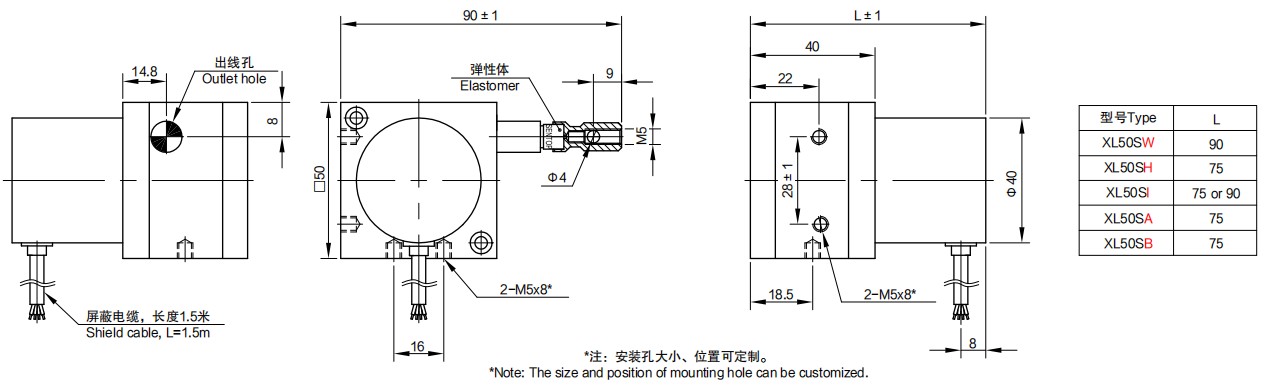

Dimension


Parameter

General Mechanical Specifications

Measure range

Max. 1000mm

Protection degree

IP54（electrical parts）

Force

2N~5.5N

Mechanical Life expectancy

2,000,000

Mass

Approx.350g

Housing material

Anodized aluminium alloy

Draw wire

0.6mm coated polyamid stainless steel

Max. reciprocating speed

300mm/s

The length of the cable

1m

Environmental Specifications

Operating temperature range

-30℃～+85℃

Storage temperature range

-30℃～+85℃

Shock

10G, 10Hz~1.5kHz

Vibration

50G, 10ms

General Electrical Specifications

Multi-turn wirewound potentiometer model

SAKAE 22HPM

Total Resistance

10KΩ（可根據(jù)客戶要求提供1KΩ、2KΩ、5KΩ和特殊阻值。）

Standard measuring range

500mm、1000mm

Total Resistance tolerance

Standard ±5%、Precision ±1%

Linearity tolerance

Standard 0.25%FS、Precision 0.1%FS

Repeatability accuracy

0.03%FS

Resolution

5000（5K）、6400（10K）、 Infinitesimal (for 22HHPM type)

Special Specifications Available

Special specifications

Available for multi-segment output, special cables, high protection degree, etc.
